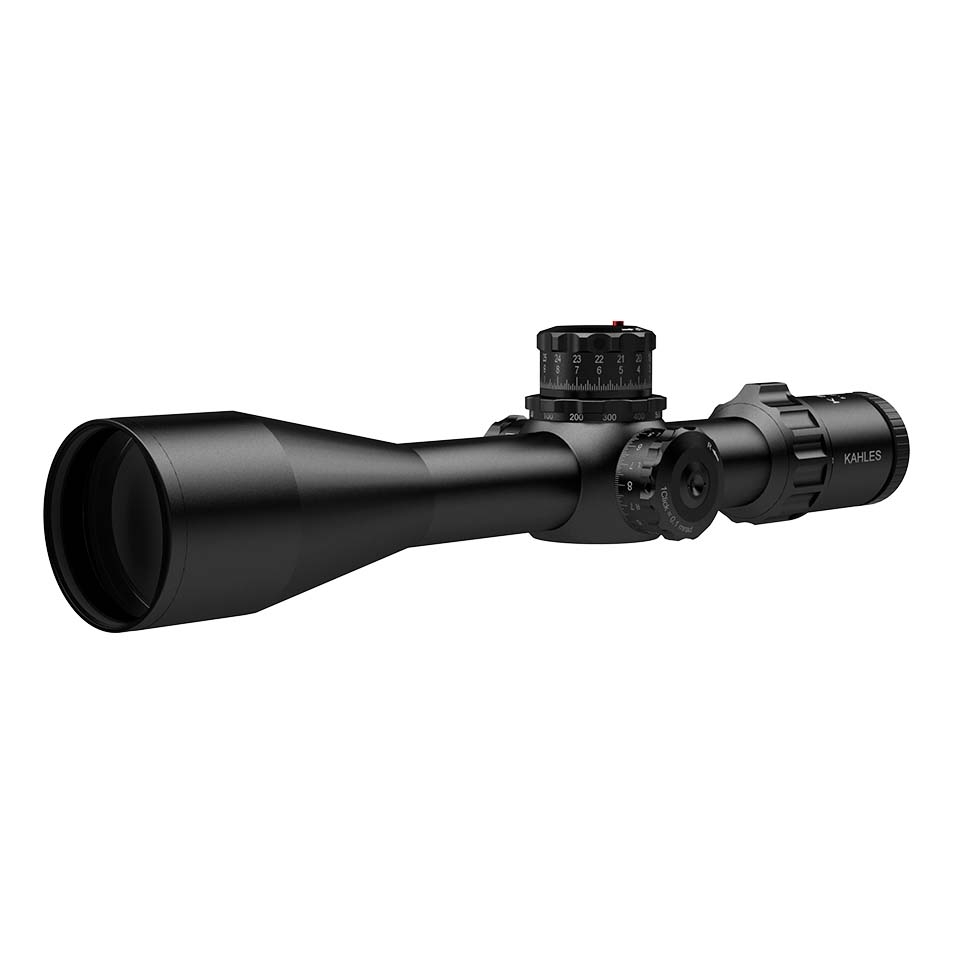

Kahles K525i 5-25x56 Rifle Scope

Kahles K525i 5-25x56 Rifle Scope. The K525i combines maximum optical performance and precision with unique handling and ergonomics. A rugged riflescope for professionals, with windage optional left or right, precise illuminated reticles in 1 st focal plane and the unique TWIST GUARD windage.

1st focal plane
When viewing the reticle in the first image plane, the reticle size also changes when the magnification is changed. The bar spacing and the coverage range remain the same.

Main tube 34 mm
The main tube has a diameter of 34 mm which is the standard for tactical scopes.

Adjustment direction CW or CCW
Depending on the model, elevation and windage are working clockwise (= cw) or counter-clockwise (= ccw).

Windage left or right
Superior handling and ergonomics thanks to the unique arrangement of operating elements

Due to the unique arrangement, all operating elements can easily and comfortably be operated with the intuitively preferred hand. Without having to reach over the riflescope or having to move out of the shooting position, all relevant information is always in the visual field. All riflescopes of the K-series have the parallax wheel integrated into the elevation turret.

The patented central arrangement on top of the riflescope makes right and left-handed operation equally comfortable.

Ergonomically the windage is perfectly placed on the left side for right-handed shooters and on the right side for left-hand shooters.

Zero Stop
The Zero Stop or mechanical stopping point is 3 or 4 clicks below the zero indicator and can be activated after having zeroed the scope. This feature allows to find intuitively and quickly the zero indicator (e.g. in bad light conditions) and to adapt perfectly to special circumstances, such as e.g. high temperatures or very close targets.

MOA or MIL
Depending on the model the clicks are in MOA or in MRAD. ¼ MOA corresponds to a shift of the point of impact of 0.741 cm/ 100 m. 0.1 MRAD corresponds to a shift of the point of impact of 1 cm/ 100 m.

Features

• Maximum optical performance – field of view, high contrast image, high definition
• Absolutely reliable repeat accuracy and precise, clearly defined click mechanism
• Optional left or right side windage
• Parallax wheel integrated into the elevation turret (patented) (20 m to ∞)
• Innovative TWIST GUARD windage (patented)
• Precise illuminated reticle in 1 st focal plane

Reticles
